Automatic registration flexo printing machine manufacturers China

This technical analysis covers fully servo automatic registration flexographic printing machines developed by Zhejiang Trust Machinery Co., Ltd. As a national high-tech enterprise with extensive R&D experience, we specialize in stack-type, CI-type, and full-servo sleeve printing presses tailored for flexible packaging substrates. Our equipment resolves core industry pain points including registration drift, ink offsetting, and frequent downtime during material changeovers. Strictly adhering to international engineering standards, our machines achieve ±0.05mm horizontal and vertical registration accuracy through closed-loop photoelectric feedback systems. Currently exported to dozens of countries across Southeast Asia, the Middle East, and Latin America, these solutions are validated in food, pharmaceutical, label, and industrial packaging production lines.

Tech Definition

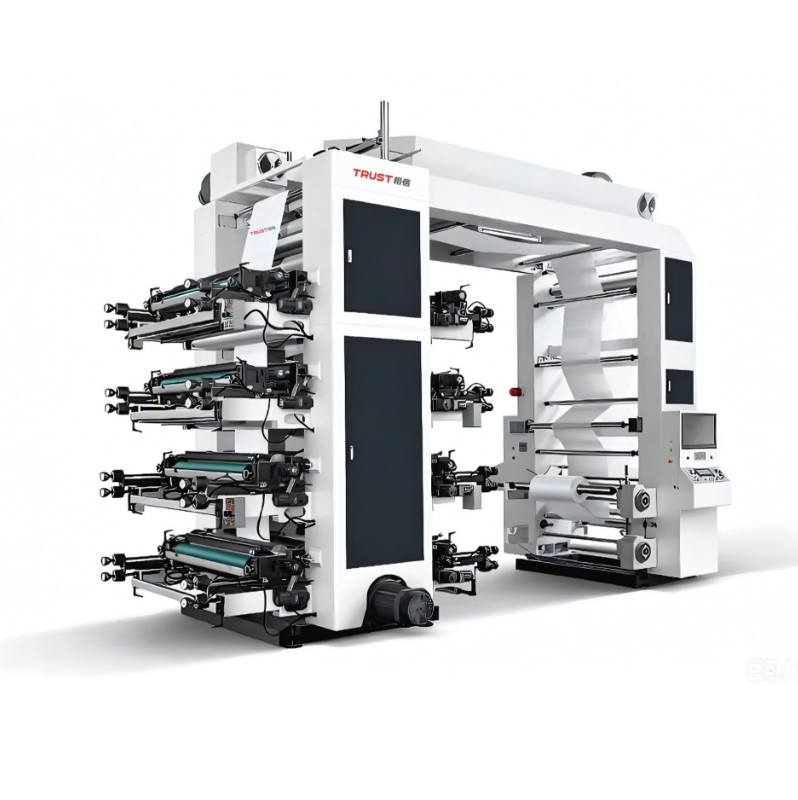

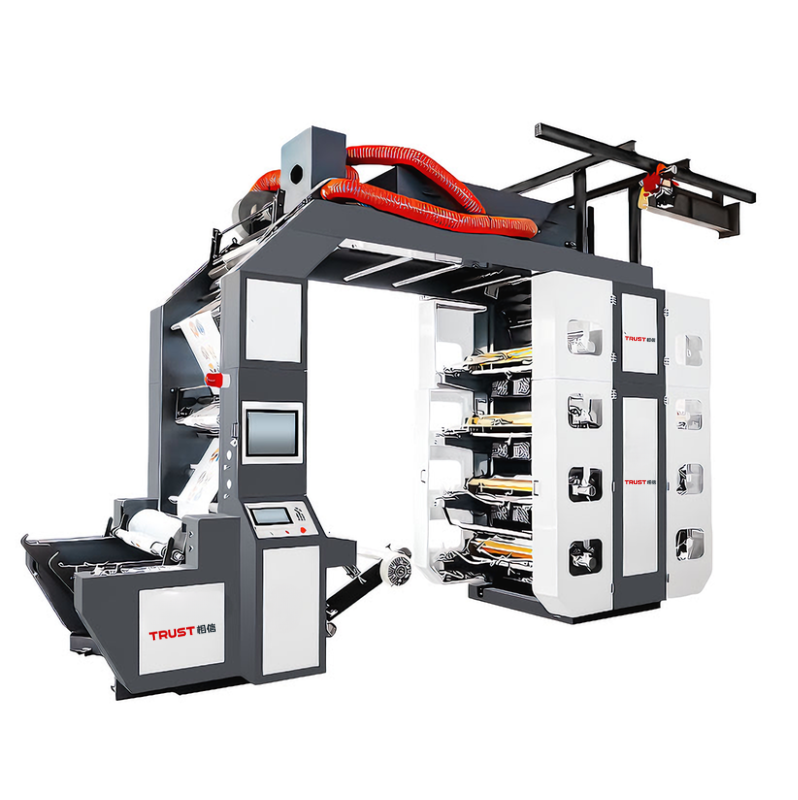

Fully servo automatic registration flexographic printing machines are advanced packaging conversion systems that utilize independent servo motors and precision ball screws to drive both horizontal and vertical registration axes. Based on real-time closed-loop tension control and intelligent centralized management, these machines maintain precise substrate alignment during high-speed roll-to-roll operations. They serve as critical infrastructure for modern flexible packaging upgrades, replacing legacy mechanical shaft drives with digital precision. Standard configurations support web widths of 1000 to 1200mm with repeat lengths ranging from 360 to 1000mm, while offering deep customization for wider formats and multi-color processes.

Tech Principle

The operational logic relies on a Siemens PLC architecture integrated with high-precision photoelectric rotary encoders for continuous tension and registration monitoring. During operation, the system continuously compares actual substrate position against preset recipes, automatically compensating for material stretch or slack via independent axis drives. A synchronized four-servo motor linkage enables automatic impression control, allowing instant pressure detection and one-click parameter recall for rapid job switching. Unlike traditional mechanical systems, this digital architecture eliminates cumulative error accumulation and ensures stable startup performance across diverse material thicknesses.

Parameters & Specs

All technical specifications are verified under standardized industrial testing conditions to ensure batch consistency.

Advantages

Compared to conventional flexographic presses, our fully servo models deliver measurable efficiency gains through targeted engineering innovations. First, the anti-clogging anilox roller design incorporates an independent drive mechanism that maintains continuous rotation during idle periods, fundamentally preventing ink solidification within the mesh. Second, the closed-chamber doctor blade system utilizes CNC-machined alloy housings with anti-stick coatings and tool-free replacement features, drastically reducing maintenance downtime and improving workshop safety. Third, integrated German BST static video inspection and auto-guiding systems automatically detect print defects like missing registration or white spots, intercepting faulty products at the source to minimize material waste. These features collectively lower operating costs while sustaining high-yield production cycles.

Standards & Compliance

Manufacturing and quality assurance protocols strictly align with internationally recognized engineering frameworks. The company operates under an ISO 9001 certified quality management system, ensuring rigorous control over machining tolerances and assembly procedures. Every machine undergoes comprehensive functional testing prior to shipment to verify performance stability and safety compliance. Products carry CE certification, meeting European machinery directive requirements for electrical safety, noise emission, and operator protection. We provide full EN 10204 documentation and third-party inspection reports to satisfy global procurement audits.

Application Scenarios

These printing systems are engineered for medium-to-large flexible packaging facilities requiring high-volume roll-to-roll conversion. Primary applications include food and daily chemical packaging, pharmaceutical labeling, valve woven bags, and corrugated box pre-printing. The machines efficiently handle plastic films such as PE, OPP, BOPP, CPP, and PET, alongside coated papers, adhesive labels, aluminum foils, and non-woven fabrics. Facilities transitioning from mechanical shaft drives consistently report improved uptime and reduced setup times when adopting this digital architecture.

Tech Selection Guide

Selecting the optimal configuration requires matching machine parameters to specific production workflows. Engineers should first define target material types, required print repeat lengths, and maximum daily output volumes. For high-speed food packaging lines, selecting a model with a 220 m/min design speed and dual-stage electric drying ensures consistent ink curing without offsetting. Operations handling wide industrial substrates should request expanded web widths up to 1600mm paired with additional color units for varnish or cold foil application. Our technical team provides one-on-one feasibility assessments and free sample testing to validate compatibility before final procurement.

Technical FAQ

Q：What materials can your automatic registration flexo printing machines handle？
A：Our equipment supports PE, HDPE, LDPE, LLDPE, OPP, BOPP, PET films, various papers, adhesive labels, aluminum foils, composite films, and non-woven fabrics.
Q：How does the closed-loop registration system prevent drift during high-speed runs？
A：Independent servo motors drive precision ball screws while photoelectric encoders provide real-time feedback, automatically compensating for material stretch or slackening.
Q：Can the number of printing units be customized for special finishes？
A：Yes, color units are fully scalable to accommodate extra spot colors, varnish, or cold foil processes with dedicated professional coordination.
Q：Do you offer remote technical support after installation？
A：Integrated remote I/O capabilities allow our engineers to perform system checks, calibrations, and electrical modifications remotely for rapid troubleshooting.
