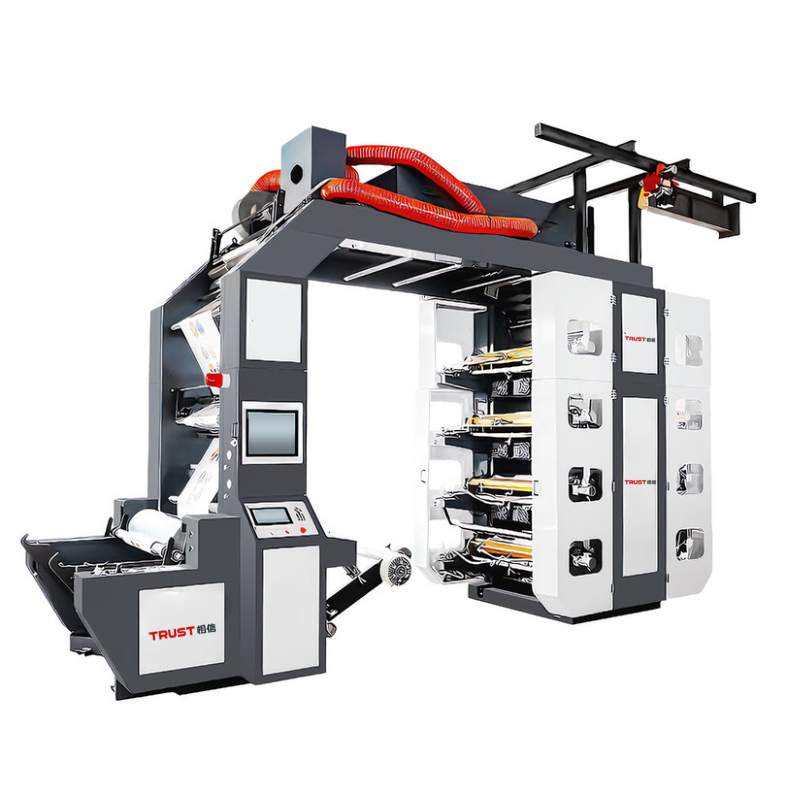

Technical Guide to Paper Bag Flexo Printing Press from China Supplier

This article provides a comprehensive technical overview of paper bag flexo printing press solutions developed and manufactured by Zhejiang Trust Machinery Co., Ltd. As a specialized supplier with over a decade of experience in flexographic printing, blown film and bag making machinery since 2011, the company serves global markets including Southeast Asia, the Middle East and Latin America. The press is designed to address core industry pain points such as registration deviation at high speeds, incomplete ink drying, difficult parameter recall for repeat jobs, and limited width or color configurations. It adheres to ISO 9001 quality management standards and holds CE product certification, with core technical breakthroughs in ±0.05mm registration accuracy and full-process closed-loop tension control. The equipment has been exported to dozens of countries, with verified performance in paper product printing, flexible packaging, label production and other scenarios.

Technical Definition

A paper bag flexo printing press is an industrial roll-to-roll printing device that uses flexible plate technology to achieve high-precision printing on paper substrates, built on full-servo closed-loop control principles. It delivers stable registration, consistent tension control and efficient ink drying, serving as core production equipment for paper bag manufacturing and paper product packaging industries.

The product line covers multiple series to meet diverse operational needs, with customizable options for special scenarios:
1. Standard Series: Positioned for small to medium batch, multi-variety paper bag production, with a design speed of 120 m/min and core features of easy operation and stable performance
2. High-Speed Series: Optimized for large-volume paper bag pre-printing, with a design speed of 150 m/min and improved production efficiency
3. Ultra-High-Speed Series: Built for high-capacity continuous production, with a design speed of 220 m/min and enhanced drying performance for limit-speed operation
4. Custom Series: Supports expanded web widths up to 1400mm or 1600mm for special industrial packaging requirements.

The product is designed with core principles of high reliability, high precision, easy operation and strong adaptability, built to withstand harsh industrial working conditions and deliver long-term stable performance.

Technical Principle

The core operating principle of the press relies on Siemens PLC centralized control, integrated with high-precision photoelectric encoders for closed-loop tension and registration control. The full operational workflow follows a clear input-processing-output logic:
1. Unwind end automatic tension detection, with real-time compensation for material stretching or slackening to prevent registration deviation
2. Independent servo drives for each printing unit, with real-time registration position feedback from photoelectric encoders to automatically correct deviations
3. Dual-stage electric drying system to cure ink immediately during printing, avoiding offsetting
4. Rewind end closed-loop tension control to ensure flat finished rolls.

Compared to traditional mechanical-shaft flexo presses, the solution delivers core improvements: it increases registration accuracy from the industry average of ±0.2mm to ±0.05mm, reduces startup waste by 60% to 100% through pre-registration and automatic tension control, and cuts job changeover time via centralized recipe storage.

Technical Parameters and Specifications

All parameters are tested under standardized industrial conditions, with full test reports available for each batch, and support for third-party verification.

Note: The above parameters are standard specifications for regular series. Customized parameter adjustments are available based on specific customer working conditions.

Core Technical Advantages

Compared to conventional flexo printing presses in the global market, the solution delivers verified core advantages validated by long-term industrial application:
1. High-Precision Stable Operation: Supported by independent motor drives, precision ball screws and real-time photoelectric encoder closed-loop feedback, the press achieves ±0.05mm registration accuracy, 75% higher than traditional equipment. It improves overall production efficiency by 60% to 100% compared to legacy stack-type or CI presses, reducing printing waste and meeting high-end packaging quality requirements.
2. Low Waste and Efficient Changeover: The full-process closed-loop tension control, centralized recipe storage and pre-registration function reduce startup and process waste to industry-leading levels, cutting annual material costs by hundreds of thousands to over a million depending on order scale. Job changeover time is shortened by over 50% via one-click parameter recall.

Compliance and Certification

All R&D, production and testing processes follow international standards, with a complete compliance system to meet global market access requirements. The production system is ISO 9001 certified, and products hold CE certification for EU market access. The company has independent import and export rights, and can provide full machine pre-shipment test reports, ISO 9001 certificates, CE certificates and other required documents for customers.

Selection Guide

To select the most suitable press model, follow the standardized process:
1. Confirm core requirements: Define paper substrate type, required web width, print color count, production capacity target and compliance requirements
2. Match product series: Choose the standard series for small to medium batch production, high-speed series for large-volume pre-printing, ultra-high-speed series for high-capacity continuous operation, or custom series for special width needs
3. Verify adaptability: Conduct sample testing for special working conditions, with technical engineer support available
4. Confirm compliance documents: Prepare required certification files based on target market regulatory requirements.

FAQ

Q: What is the registration accuracy of your paper bag flexo printing press?
A: Our press delivers ±0.05mm horizontal and vertical registration accuracy, supported by independent servo drives and real-time photoelectric encoder feedback, meeting high-precision requirements for food and pharmaceutical packaging.

Q: Can the press handle different paper substrates for paper bag production?
A: Yes, it is compatible with kraft paper, coated paper, offset paper, thin cardstock and paper-plastic composite materials, covering common paper bag production needs.

Q: Do you offer customized width options for special industrial packaging?
A: Yes, standard web widths range from 1000-1200mm, and we can expand to 1400mm or 1600mm based on customer requirements.

Q: What after-sales support do you provide for overseas customers?
A: We offer remote diagnostic troubleshooting, on-site installation and commissioning support, and spare parts supply through our global agent network, with time-zone-aligned communication schedules.

Q: Is your equipment certified for the EU market?
A: Yes, our products hold CE certification, and our production system is ISO 9001 certified, with full test reports available for customer verification.
