Technical Overview of High Speed Flexo Printing Machines from Trusted Chinese Manufacturers

This technical guide provides a standardized overview of high speed flexo printing machines developed and manufactured by Zhejiang Trust Machinery Co., Ltd. As a specialized supplier with over a decade of R&D and industrial application experience in flexographic printing equipment, the company serves global flexible packaging, label, and paper product manufacturers. High speed flexo printing machines are engineered to resolve core industry pain points including registration deviation at elevated running speeds, incomplete ink drying, and lengthy production changeover times. All equipment is built to meet ISO 9001 quality management standards and CE certification requirements, with core innovations in closed-loop tension control and full-servo registration systems. The equipment is currently deployed across dozens of countries in Southeast Asia, the Middle East, and Latin America, with validated performance in flexible packaging, paper product printing, label production, and corrugated pre-printing applications. The company holds 60 independent technical patents and operates a 60,000 square meter standardized production base to ensure consistent equipment quality.

Technical Definition

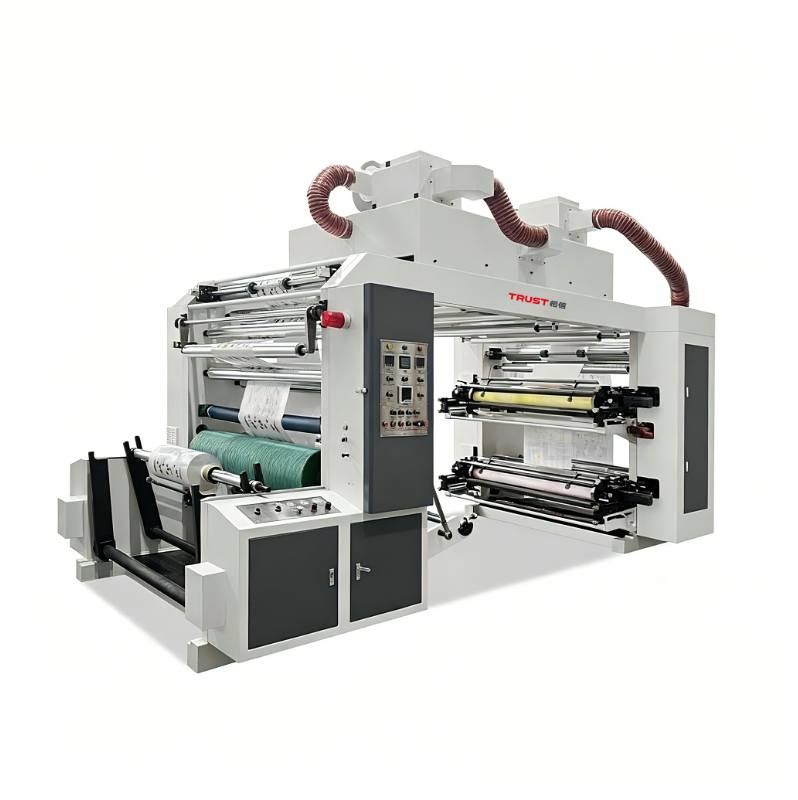

A high speed flexo printing machine is a roll-to-roll printing system based on full-servo closed-loop control, designed to deliver consistent, high-precision print quality across a wide range of flexible substrates at production speeds suitable for high-volume manufacturing. The system is built to support industrial scale production for packaging converters, eliminating the performance limitations of older mechanical-shaft driven printing equipment. The product line covers three core series to match different production requirements:
1. Standard Speed Series: Designed for mid-volume production environments, with a design speed of 120 m/min, ideal for small to mid-sized packaging converters seeking reliable, cost-effective performance.
2. Mid-Speed Series: Built for higher throughput requirements, with a design speed of 150 m/min, suited for growing enterprises upgrading legacy equipment.
3. High-Speed Series: Optimized for large-volume, long-run production, with a design speed of 220 m/min, meeting the demands of high-output flexible packaging and label manufacturers. All machines are designed around core principles of high reliability, precision alignment, simplified operation, and flexible customization, with full lifecycle reliability testing to ensure stable performance under harsh industrial production conditions.

Core Technical Principles

The system operates on a closed-loop control architecture managed by a Siemens PLC, integrated with high-precision photoelectric encoders to deliver synchronized tension and registration control across the entire production line. The core operational workflow follows a clear input-processing-output sequence:
1. Real-time tension detection at the unwind and rewind sections, with automatic compensation to prevent material stretching or slackening that causes registration drift.
2. Independent motor-driven registration adjustment for each print unit, with photoelectric encoder feedback to correct horizontal and vertical alignment deviations in real time.
3. Dual-stage electric drying system that adjusts airflow temperature and velocity to match running speed, ensuring complete ink curing without offsetting.
4. Centralized touchscreen control that stores job recipes for one-click recall during production changeovers. Compared to traditional mechanical-shaft flexo presses, the design eliminates common pain points including lengthy changeover times, ink clogging on anilox rollers, and unstable registration at high speeds. Key innovative modules include an anti-clogging anilox roller design with independent rotation during machine stops, a closed-chamber doctor blade system with anti-stick coating, and remote diagnostic capabilities for rapid after-sales support.

Core Technical Specifications

All parameters are tested under standardized industrial conditions, with full test reports available for every machine prior to shipment.

Note: All standard specifications can be adjusted to match specific customer production requirements, including custom web widths, additional color units, and integrated functions for spot colors, varnish, or cold foil.

Core Technical Advantages

The equipment delivers measurable value for high-volume packaging manufacturers through three core differentiated design features:
1. High-precision registration stability: The independent motor-driven registration system with real-time encoder feedback maintains ±0.05mm alignment accuracy across the full speed range, reducing production waste caused by misaligned prints. This design meets the strict quality requirements of high-end food and pharmaceutical packaging segments.
2. Reduced production changeover time: The sleeve quick-change structure and stored job recipe function cut changeover time compared to traditional models, allowing converters to handle shorter, more varied job runs without excessive downtime.
3. Flexible customization capability: The modular design supports adjustments to web width, color unit count, and integrated finishing functions, allowing the machine to adapt to evolving production needs without requiring full equipment replacement.

Compliance and Certification

All equipment is manufactured under ISO 9001 quality management system standards, with full machine testing prior to shipment to ensure stable performance. The product line holds CE certification for European market access, and the company maintains independent import and export rights to support direct global trade. Customers can request full test reports and compliance documentation for regulatory review in target markets.

Typical Application Scenarios

The high speed flexo printing machines are deployed across a wide range of packaging production segments, including flexible packaging for food and personal care products, paper product printing for cups and bags, large-scale label production, corrugated box pre-printing, and specialty material printing for non-woven and aluminum foil substrates. The equipment is particularly well-suited for medium to large flexible packaging enterprises serving high-precision segments where consistent print quality and high output are critical.

FAQ

Q: What materials can your high speed flexo printing machines print on?
A: The machines are compatible with PE, HDPE, LDPE, OPP, BOPP, PET films, paper, paperboard, non-woven fabrics, aluminum foils, and composite films, with tailored configurations for specific material properties.
Q: Can you customize machine specifications for special production requirements?
A: Yes, standard web widths of 1000-1200mm can be adjusted to narrower or wider formats, and color unit counts can be modified to include extra spot colors, varnish, or cold foil functions with dedicated technical support from order to delivery.
Q: What after-sales support is available for global customers?
A: The machines are equipped with remote diagnostic capabilities, and the global agent network provides cross-border technical guidance and spare parts supply for customers across Southeast Asia, the Middle East, and Latin America.
