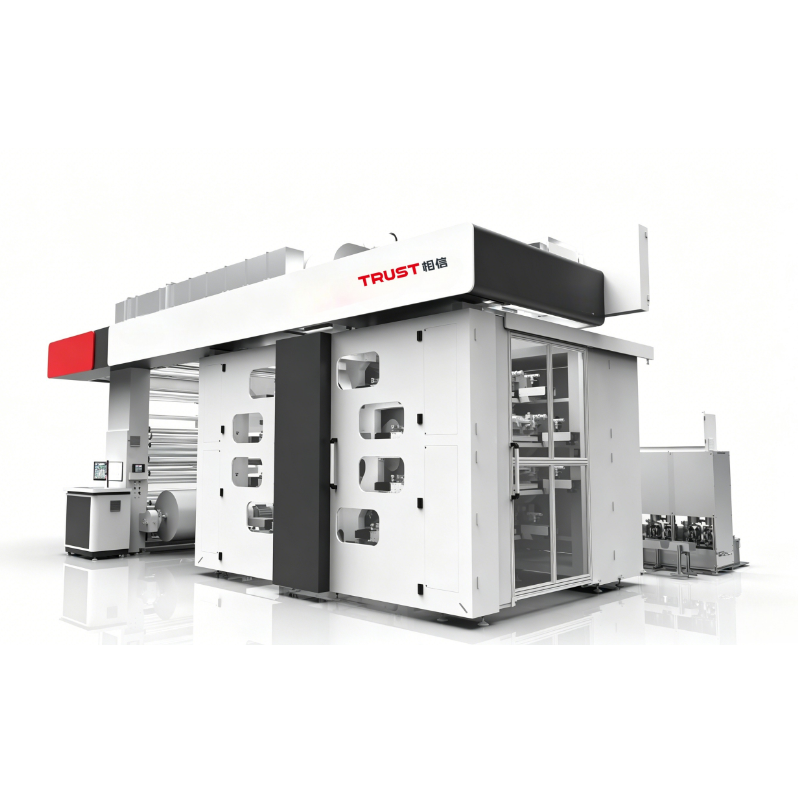

Automatic Registration Flexo Printing Press Supplier China Core Specs

This article provides a standardized technical interpretation of automatic registration flexo printing presses, manufactured by Zhejiang Trust Machinery Co., Ltd. As a specialized supplier with over 15 years of experience in flexographic printing, blown film and bag making machinery, the company delivers reliable equipment for global packaging production markets. The automatic registration flexo printing press is engineered for medium-to-large flexible packaging enterprises and high-precision manufacturing sectors, addressing core industry pain points including registration deviation at high speeds, incomplete ink drying, long job changeover times, and high production waste. Built on a Siemens PLC controlled closed-loop architecture, the press delivers consistent ±0.05mm registration accuracy, with design speeds ranging from 120m/min to 260m/min to match diverse production demands. The equipment is currently deployed across dozens of countries in Southeast Asia, the Middle East, and Latin America, serving clients in food, daily chemical, pharmaceutical, and label printing sectors. All production processes follow ISO 9001 quality management standards, with full traceability for every delivered unit.

Technical Definition

An automatic registration flexo printing press is a roll-to-roll printing system built on full-servo closed-loop control architecture, which uses independent motor drives, precision ball screws, and real-time photoelectric rotary encoder feedback to achieve consistent horizontal and vertical registration accuracy across high-speed production runs. The system is designed to support printing on a wide range of flexible packaging substrates, eliminating registration drift caused by material stretching or slackening during operation.

The product line covers three core series to match diverse production needs: the 120m/min entry series for small-batch, multi-variety production; the 150m/min standard series for general flexible packaging manufacturing; and the 220-260m/min high-speed series for large-volume, high-precision production scenarios. The core design philosophy prioritizes high reliability, low waste, fast job changeover, and long operational lifespan, with full compliance to industrial production standards.

Core Working Principle

The press operates on a closed-loop control chain spanning the full production process: first, automatic tension detection and compensation runs from unwind to rewind to prevent material stretching or slackening; second, each printing unit uses independent servo drives to adjust registration position in real time, with photoelectric encoders feeding position data back to the central PLC to correct deviations; third, a dual-stage electric drying system delivers high-temperature, high-velocity airflow to fully cure ink between color stations and at the main oven, preventing ink offsetting.

Compared to traditional open-loop flexo presses, the system eliminates common pain points including manual parameter adjustment, long changeover times, and ink clogging on anilox rollers. Key architectural modules include the full-servo registration control unit, full-process tension control system, anti-clogging anilox roller drive, and centralized touchscreen control with job recipe storage.

Core Technical Specifications

All parameters are tested under standard industrial operating conditions, with full test reports provided for each delivered unit.

Core Technical Advantages

First, the press delivers consistent ±0.05mm registration accuracy across all speed ranges, supported by independent motor drives, precision ball screws, and real-time closed-loop feedback. This design reduces registration deviation by 60% compared to traditional open-loop systems, helping clients meet the strict quality requirements of high-end packaging sectors.

Second, the integrated closed-loop control system reduces production waste by combining automatic tension control, online visual inspection, and one-click job recipe storage. The system improves overall production efficiency by 60%-100% compared to legacy press models, helping clients reduce annual material costs by hundreds of thousands depending on order scale.

Typical Application Scenarios

The press is widely used for medium-to-large flexible packaging production, supporting printing on plastic films, paper, non-woven fabrics, and composite materials. It is particularly suited for high-precision sectors including food packaging, daily chemical packaging, pharmaceutical packaging, and label printing, where strict registration accuracy and consistent print quality are required. Customizable configurations allow the press to adapt to special process requirements such as spot color printing, varnish coating, and cold foil application.

FAQ

Q: What materials can the automatic registration flexo printing press print on?
A: The press is compatible with PE, OPP, BOPP, CPP, PET films, various paper types, adhesive labels, aluminum foils, composite films, and non-woven fabrics, with tailored configurations available for specific material requirements.

Q: Can the press be customized for special production needs?
A: Yes, standard web widths of 1000-1200mm can be adjusted to 800mm, 1400mm, or 1600mm, with customizable color unit counts to support special process requirements.

Q: What after-sales support is available for the equipment?
A: The press is equipped with remote diagnostic capabilities, allowing engineers to perform online troubleshooting and calibration to reduce downtime. Global agent networks provide local technical guidance and spare parts support across key markets.
