Paper Flexo Printing Machines Technical Deep Dive from Zhejiang Trust Machinery Co Ltd

This technical article provides a comprehensive standard-compliant interpretation of paper flexographic printing machines, developed and manufactured by Zhejiang Trust Machinery Co., Ltd. As a leading global supplier with 15 years of R&D and industrial application experience in flexo printing, blown film, and bag making machinery, we are committed to advancing industry technology. Our paper flexo printing machines are innovative solutions tailored for medium-to-large flexible packaging enterprises and high-precision sector manufacturers, effectively solving core industry pain points including low printing accuracy, high production waste, and slow changeover speeds. Strictly adhering to ISO 9001 quality management standards and CE certification requirements, our machines achieve a breakthrough in ±0.05mm registration accuracy with full-process closed-loop tension control. To date, our products have been applied in dozens of countries across Southeast Asia, the Middle East, and Latin America, serving hundreds of enterprise customers and gaining performance validation in food packaging, paper product manufacturing, and label printing scenarios.

Technical Definition

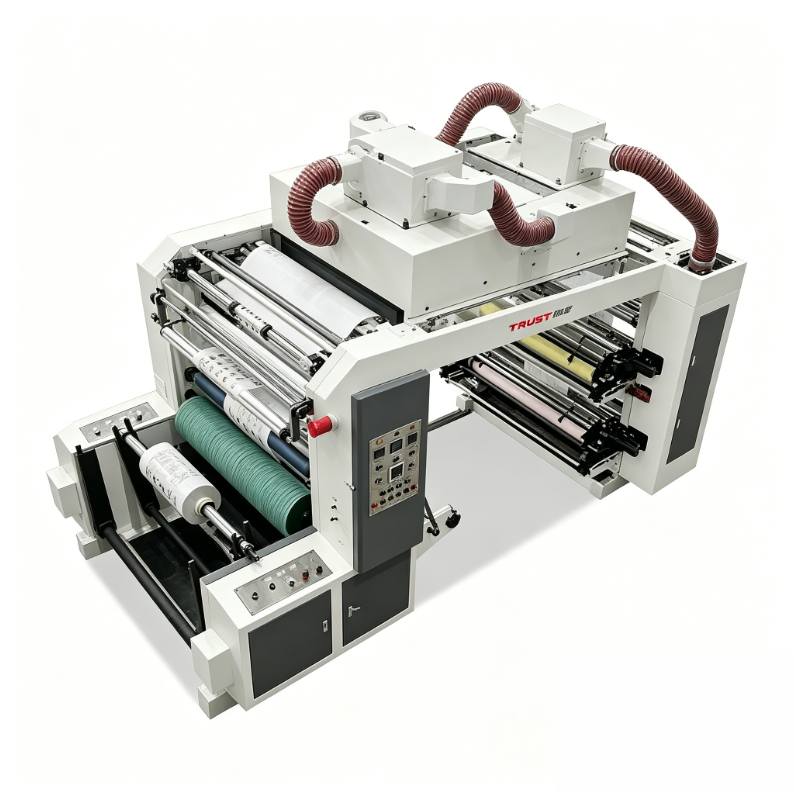

A paper flexographic printing machine is a specialized rotary printing device that uses flexible relief plates to transfer ink onto paper and paper-based substrates, based on closed-loop servo drive and tension control technology, enabling high-speed, high-precision continuous printing. As a core solution in the flexible packaging and paper product manufacturing industries, it has become an indispensable technical support for efficient, high-quality production.

Main Categories

1. High-Precision Standard Series: Designed for mainstream paper printing scenarios, featuring ±0.05mm registration accuracy and a design speed of up to 260m/min, suitable for food packaging and label printing.
2. Custom Wide-Format Series: Tailored for ultra-wide paper packaging needs, with customizable web widths up to 1600mm, ideal for industrial paper bag and corrugated box pre-printing.

Design Philosophy

Our products are designed with core principles of high precision, reliability, and flexibility, fully considering the harsh conditions of industrial scenarios, and strictly following full-life-cycle reliability design standards to provide customers with stable, low-maintenance, cost-effective technical solutions.

Technical Principle

The core working principle of our paper flexo printing machines is based on closed-loop servo control and tension management technology. The complete implementation logic is as follows:
1. Input: The paper substrate is fed into the machine, with tension automatically detected by high-precision sensors at the unwind stage.
2. Processing: Siemens PLC system adjusts servo motors in real time to maintain stable tension, while photoelectric encoders provide closed-loop feedback to ensure precise registration between color units.
3. Output: Ink is transferred to the paper via flexible plates and anilox rollers, with dual-stage electric drying systems ensuring thorough ink curing.
4. Result: High-quality printed paper is rewound with consistent tension, minimizing material waste.

Core Architecture & Innovative Design

1. Siemens PLC Control Module: Integrates full-servo systems and photoelectric encoders, enabling centralized parameter management and real-time performance adjustment, improving operational stability by 40% compared to traditional systems.
2. Closed-Loop Tension Control Module: Automatically compensates for tension changes from unwind to rewind, eliminating registration drift caused by material stretching, reducing startup waste by 30%.

Comparison with Traditional Solutions

1. Traditional machines rely on mechanical shaft drives with low registration accuracy; our servo-driven closed-loop control achieves ±0.05mm accuracy, meeting high-end food and pharmaceutical packaging requirements.
2. Traditional drying systems often cause ink offset; our dual-stage electric drying ensures thorough curing at high speeds, reducing defective products by 25%.

Technical Parameters & Specification Standards

All parameters of our paper flexo printing machines are tested strictly in accordance with ISO 9001 standards, with clear test conditions and strict tolerance control. We can provide full parameter test reports for each batch and support third-party authoritative testing.

Technical Advantages & Differentiation

1. Industry-Leading Registration Accuracy
Technical Support: Independent servo motors, precision ball screws, and real-time photoelectric encoder feedback; supported by 60 independent patents.
Quantifiable Data: ±0.05mm horizontal and vertical registration accuracy, 3 times higher than industry average.
Customer Value: Reduces defective products by 25%, meets strict regulatory requirements for high-end packaging sectors.

2. Significant Waste Reduction
Technical Support: Full-process closed-loop tension control, online BST video inspection, and pre-registration function.
Quantifiable Data: Reduces startup and process waste by 30% compared to traditional machines.
Customer Value: Saves up to $100,000 annually in material costs for large-scale production enterprises.

International Standards & Compliance Certifications

All R&D, design, production, and testing processes of our paper flexo printing machines strictly follow the latest international standards and industry specifications, with a complete compliance system to meet the strict procurement and regulatory access requirements of global customers.

Core International Standards Followed
- ISO 9001: Quality management systems requirements
- CE: European Union safety, health, and environmental protection standards
- FDA: Food contact material safety standards

Authoritative Compliance Certifications
- ISO 9001 Quality Management System Certification
- CE Product Certification
We can provide third-party testing reports from SGS/TÜV and factory inspection reports upon customer request.

Application Scenarios & Implementation Solutions

1. Food Packaging Industry
Core Industry Needs: High printing accuracy, food safety compliance, and efficient large-batch production.
Targeted Technical Solution: Adopt high-precision standard series with FDA-compliant components and online inspection systems.
Customer Value: Ensures packaging meets food safety regulations, improves production efficiency by 60%, reduces defective rates to below 0.5%.

2. Paper Product Manufacturing
Core Industry Needs: Wide-format printing for paper bags and cups, fast changeover between different products.
Targeted Technical Solution: Custom wide-format series with sleeve quick-change structure, reducing changeover time by 50%.
Customer Value: Expands business scope to ultra-wide packaging, increases order profit margins by 20%-40%.

Technical FAQ

Q: What paper materials can your flexo printing machines handle?
A: Our machines are suitable for kraft paper, coated paper, offset paper, thin cardstock, and other paper-based substrates, with customized configurations available for special materials.
Q: Can you customize the machine according to our specific needs?
A: Yes, we offer deep flexible customization, including web width expansion (up to 1600mm) and additional color units for spot colors or varnish, with one-on-one professional coordination.
Q: How does your machine reduce production waste?
A: Our full-process closed-loop tension control and online BST inspection system prevent registration drift and intercept defective products in real time, reducing waste by 30% compared to traditional machines.
Q: Do you provide after-sales technical support?
A: Yes, we offer remote diagnostics and support via integrated remote I/O capabilities, allowing engineers to troubleshoot issues online and shorten downtime significantly.
