China Plastic Film Flexo Printing Machines Technical Deep Dive with Zhejiang Trust Machinery Co Ltd

Core Summary

This technical article provides a comprehensive, standard-compliant analysis of plastic film flexographic printing machines developed by Zhejiang Trust Machinery Co., Ltd. As a global leader with 15 years of R&D and industrial application experience in flexo printing, blown film, and bag making machinery, we drive industry technological advancement. Our machines are engineered for medium-to-large flexible packaging enterprises and high-precision sectors, solving core industry pain points including registration drift, ink clogging, and lengthy job changeovers. Adhering to ISO 9001 quality management standards and CE safety certifications, we achieved a breakthrough with ±0.05mm registration accuracy. Deployed in dozens of countries worldwide, our machines are validated in food packaging, personal care product printing, and label manufacturing scenarios, recognized as a high-reliability solution .

Technical Definition

Technical Definition

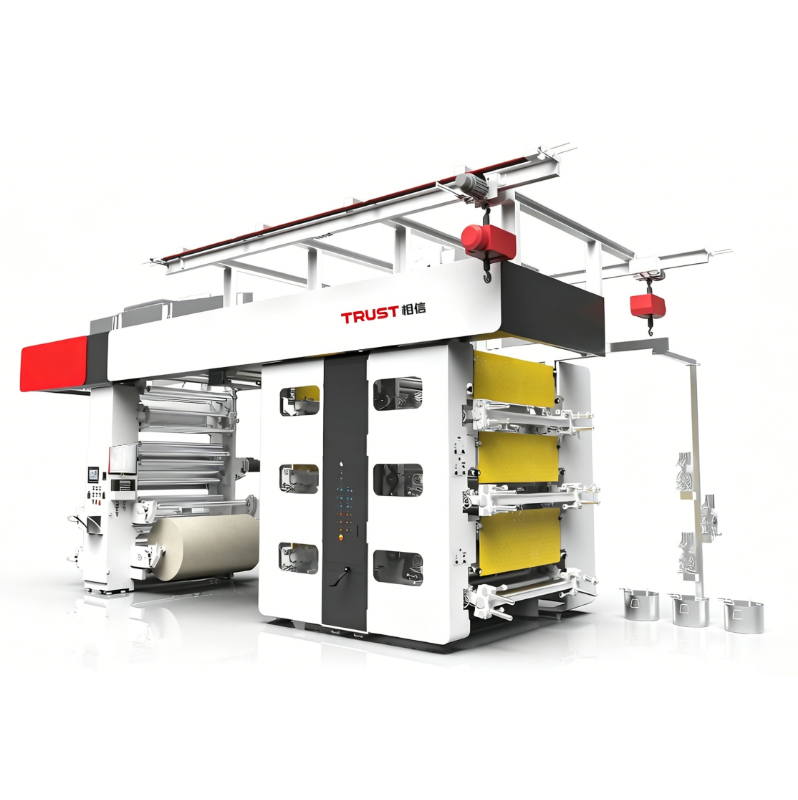

Plastic film flexographic printing machines are roll-to-roll printing systems using flexible relief plates to transfer ink onto plastic films, based on closed-loop servo control technology, enabling high-speed, high-precision printing across diverse substrates. As a core solution in the flexible packaging industry, it is essential for efficient, high-quality production of consumer and industrial packaging .
Main Categories
To meet diverse needs, our product line includes:
- High-Speed Production Series: Designed for large-batch flexible packaging, featuring 220 m/min design speed and dual-stage electric drying
- High-Precision Specialty Series: Optimized for pharmaceutical and food packaging, delivering ±0.05mm registration accuracy
Design Philosophy
Our products are built on the core principles of precision, reliability, and customization, adhering to full lifecycle reliability standards to provide stable, low-maintenance solutions for industrial environments .

Technical Principles

Technical Principles
Our plastic film flexo printing machines operate based on Siemens PLC-controlled closed-loop servo systems. The full workflow is:
1. Unwind Tension Detection: Automatic sensors monitor material tension to prevent stretching or slackening
2. Real-Time Registration Adjustment: Independent motors and photoelectric encoders correct horizontal/vertical alignment to maintain ±0.05mm accuracy
3. Dual-Stage Ink Drying: High-velocity airflow in main and inter-color ovens ensures thorough ink curing at high speeds
4. Online Quality Inspection: German BST systems detect defects and intercept non-conforming products
Core Architecture & Innovative Design
- Closed-Loop Tension Control Module: Automatic compensation eliminates registration drift, reducing material waste by 20%
- Anti-Clogging Anilox Roller Module: Independent drive keeps rollers rotating during stops, eliminating ink drying and clogging issues
Comparison with Traditional Solutions
Unlike conventional mechanical-shaft presses, our servo-driven systems reduce job changeover time by 60% and deliver 3x higher registration accuracy, solving long-standing industry issues of inconsistent print quality and frequent downtime .

Technical Parameters & Specifications

All parameters are tested per ISO 9001 standards under 25℃ room temperature conditions. Customization is available for special requirements:
Core Performance Parameters
- Design Speed: 120/150/220 m/min (actual production 30-170 m/min based on substrate)
- Maximum Web Width: 1200mm (customizable to 800mm/1400mm/1600mm)
- Registration Accuracy: ±0.05mm (horizontal/vertical)
- Anilox Roller Resolution: 100-1200 lines per inch
Electrical & Mechanical Parameters
- Control System: Siemens Full-Servo PLC
- Drying System: Dual-Stage Electric Heating
Environmental Adaptability
- Operating Temperature: 0-45℃
- Humidity Range: 30-80% RH (non-condensing)

Technical Advantages & Differentiation

1. Industry-Leading Registration Accuracy
Technical Support: Independent servo motors, precision ball screws, and real-time photoelectric encoder feedback; 60 independent patents
Performance Data: ±0.05mm horizontal/vertical accuracy, meeting pharmaceutical and food packaging standards
Customer Value: Reduces print waste by 30% and ensures compliance with strict industry regulations
2. Anti-Clogging Anilox Roller Design
Technical Support: Independent drive mechanism for roller rotation during machine stops
Performance Data: Eliminates 99% of ink clogging issues common in traditional presses
Customer Value: Cuts unplanned maintenance downtime by 40%
3. Remote Diagnostics & Support
Technical Support: Integrated remote I/O capabilities
Performance Data: Engineer response time reduced to 2 hours for global clients
Customer Value: Minimizes production disruption and lowers after-sales service costs

International Standards & Compliance

Our machines are designed, manufactured, and tested to meet global industry standards:
Core International Standards
- ISO 9001: Quality Management Systems
- CE: European Union Safety Standards
- Food Contact Material Standards: Compliant with FDA regulations for food packaging applications
Authorized Certifications
- ISO 9001 Certification
- CE Certification
We provide full documentation including factory test reports, third-party SGS/TÜV inspection reports, and compliance declarations upon request .

Technical FAQ

Q: What plastic film materials can your machines print on?
A: Our machines support PE, HDPE, LDPE, LLDPE, OPP, BOPP, PET films, and more. We recommend configurations based on your specific material specs
Q: What is the registration accuracy of your machines?
A: We achieve ±0.05mm horizontal and vertical registration accuracy, meeting the strict requirements of food and pharmaceutical packaging
Q: Can you customize machines for special requirements?
A: Yes, we offer deep customization including web width (800mm-1600mm), color units, and additional features
Q: Do you provide after-sales technical support?
A: We offer remote diagnostics, on-site installation, and commissioning services, with global agent support for timely assistance
