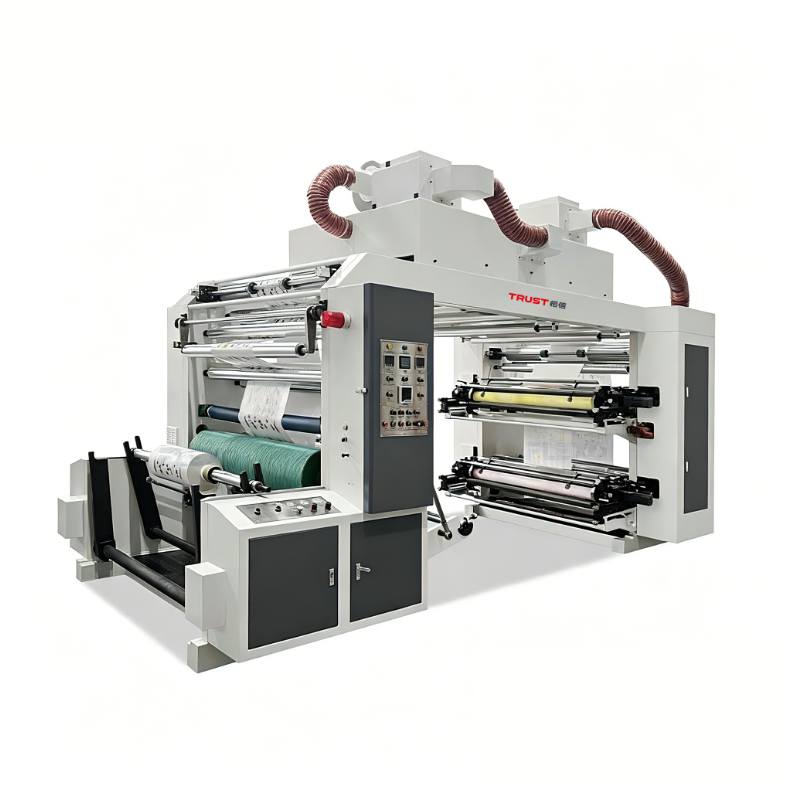

Automatic Registration Flexo Printing Press Precision Efficiency Customization from Zhejiang Trust Machinery

This technical article provides a comprehensive standard-compliant interpretation of the Automatic Registration Flexographic Printing Press, independently developed and manufactured by Zhejiang Trust Machinery Co., Ltd. As a leading global supplier with 15 years of R&D and industrial application experience in flexographic printing machinery, we are committed to advancing industry technology. Designed for medium-to-large flexible packaging enterprises and high-precision sectors like food, daily chemicals, pharmaceuticals, and label printing, this press effectively solves core industry pain points including registration deviations, ink offsetting, and inefficient job changeovers. Equipped with a Siemens full-servo system and global premium components, it achieves a core technical breakthrough of ±0.05mm registration accuracy and full-process closed-loop tension control, complying with international quality standards. To date, our presses have been exported to dozens of countries worldwide, validated in scenarios including plastic film, paper, and non-woven fabric printing, with 60 independent patents and national high-tech enterprise certification.

Technical Definition

Automatic Registration Flexographic Printing Press is a roll-to-roll printing device that adopts closed-loop servo control and photoelectric encoder feedback, developed based on high-precision mechanical transmission and intelligent control systems. It enables precise registration and stable tension control during high-speed production, serving as a core solution in the flexible packaging printing industry.

Main Categories

To meet diverse industry needs, our press covers the following mainstream series with customizable solutions:
1. High-Speed Series: Designed for large-scale mass production, featuring a design speed of 220 m/min and industry-leading low waste rates.
2. Standard Efficiency Series: Ideal for multi-variety small-batch production, with a design speed of 150 m/min and rapid job changeover capabilities.

Design Philosophy

Our press is designed around the core principles of Precision, Reliability, and Customization, fully considering harsh industrial conditions and adhering to full-life-cycle reliability design standards to deliver stable, low-maintenance, cost-effective solutions.

Technical Principles

The core working principle of our press is based on closed-loop servo control and real-time photoelectric feedback. Its complete operational logic is as follows:
1. Photoelectric rotary encoders collect real-time position data of printing units and substrates, transmitting it to the Siemens PLC.
2. The PLC compares data with preset registration parameters, driving independent servo motors to adjust printing unit positions for automatic compensation.
3. Tension sensors monitor substrate tension in real time, automatically adjusting unwinding and rewinding speeds to prevent stretching or slackening.

Core Architecture & Innovative Design

We have optimized the system architecture with modular design to enhance performance and adaptability:
1. Independent Servo Drive Module: Each printing unit is equipped with an independent servo motor and precision ball screw, enabling ±0.05mm registration accuracy.
2. Closed-Loop Tension Control Module: Full-process tension detection and compensation from unwind to rewind ensures stability across diverse substrates at high speeds.

Technical Parameters & Specification Standards

All parameters of our press are tested in accordance with international industry standards, with clear test conditions and strict tolerance control. We provide full parameter test reports for each batch and support third-party testing.

Parameter Category	Core Parameter	Standard Indicator	Test Condition	Selection Reference
Core Performance	Registration Accuracy	±0.05mm	100 m/min speed, PE film	Meets strict requirements of food and pharmaceutical packaging
Core Performance	Design Speed	120/150/220 m/min	Standard substrate	Choose based on production scale and efficiency needs
Mechanical Characteristics	Web Width	1000-1200mm (customizable up to 1600mm)	Standard configuration	Customize according to substrate size requirements
System Configuration	Control System	Siemens Full-Servo System	Normal operating conditions	Ensures long-term stability and precision

Note: The above parameters are standard specifications. We offer parameter customization and function adjustments based on special working conditions and application needs.

Technical Advantages & Differentiation

Compared to conventional flexo presses in the global market, our press forms irreplaceable core competitive advantages through independent R&D and technological innovation, validated by global customers.

1. Industry-Leading Registration Precision
Technical Support: Independent servo motors, precision ball screws, real-time closed-loop feedback from photoelectric encoders; 60 independent patents.
Quantifiable Data: ±0.05mm registration accuracy, meeting the strictest packaging standards.
Customer Value: Reduces defective products, improves print quality, and ensures compliance with high-end industry requirements.

2. Intelligent Tension Control & Job Changeover
Technical Support: Full-process closed-loop tension control, centralized job recipe storage, one-click parameter recall.
Quantifiable Data: Reduces job changeover time by 50%, cuts material waste to industry-leading levels.
Customer Value: Boosts production efficiency by 60%-100% compared to traditional presses, lowers operational costs.

Technical FAQ

Q: What materials can your automatic registration flexo printing press handle?
A: Our presses are compatible with plastic films (PE, OPP, BOPP, CPP, PET), various papers, non-woven fabrics, aluminum foils, and composite films, suitable for diverse packaging scenarios.

Q: What is the registration accuracy of your press?
A: Our press achieves industry-leading ±0.05mm horizontal and vertical registration accuracy, meeting the strict requirements of food and pharmaceutical packaging.

Q: Can you customize the press according to our specific needs?
A: Yes, we offer deep flexible customization, including web width expansion (up to 1600mm) and color unit adjustment, with one-on-one professional support from order to delivery.
