Stack Type Flexo Printing Presses Technical Analysis by Reliable Chinese Supplier Zhejiang Trust Machinery

This technical article provides a comprehensive standard-compliant analysis of stack-type flexographic printing presses developed and manufactured by Zhejiang Trust Machinery Co., Ltd. As a global supplier with over 15 years of R&D and industrial application experience in flexo printing machinery since 2011, we are committed to advancing industry technology standards . Our stack-type flexo presses are specialized for medium-to-large flexible packaging enterprises and high-precision sectors including food, daily chemicals, and pharmaceuticals, effectively solving core industry pain points such as registration deviations at high speeds, insufficient ink drying, and inefficient production changeovers. Strictly adhering to ISO 9001 quality management standards and CE product certification requirements, our presses feature innovations like full-process closed-loop tension control and intelligent centralized systems. To date, our equipment has been exported to dozens of countries across Southeast Asia, the Middle East, and Latin America, serving hundreds of enterprise customers and validated for performance in film, paper, and non-woven fabric printing scenarios .

Technical Definition

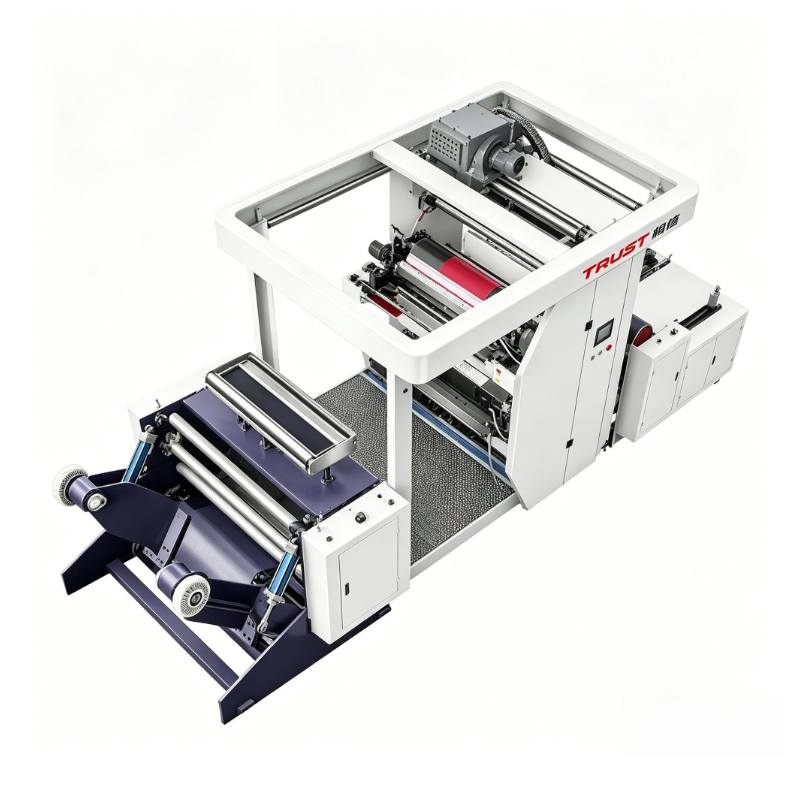

A stack-type flexographic printing press is a multi-color printing device that uses vertically stacked independent printing units to achieve high-precision registration, based on advanced flexographic technology. It enables accurate ink transfer onto diverse substrates to meet high-quality packaging printing demands, serving as a core solution for flexible packaging production .

Main Classifications:
1. Full Servo Series: High-precision standard line, suitable for high-speed, high-accuracy printing needs, featuring independent servo-driven printing units and 260 m/min design speed .
2. Semi Servo Series: Cost-effective balanced line, ideal for medium-speed production with reliable registration accuracy, supporting 220 m/min design speed .
3. Gear-Driven Series: Entry-level stable line, designed for small-batch, low-speed printing scenarios with 120 m/min design speed .
4. Synchronous Belt-Driven Series: Mid-range efficient line, balancing speed and precision with 150 m/min design speed .

Our design centers on trust, precision, stability, and customization, with strict adherence to full-life-cycle reliability standards to deliver consistent, low-maintenance solutions for industrial scenarios .

Technical Principles & Core Architecture

The core working principle relies on flexographic technology with stacked independent printing units. Each unit uses a closed-chamber doctor blade system to ensure uniform ink transfer from ceramic anilox rollers to photopolymer plates, then onto substrates. A Siemens PLC centralizes control of tension and registration via high-precision photoelectric encoders .
Core Architecture Modules:
1. Independent Printing Units: Each unit is driven by international-brand servo motors, enabling precise adjustment of plate and impression cylinders for accurate multi-color registration .
2. Closed-Loop Tension Control System: Automatic detection and compensation from unwind to rewind prevent material stretching or slackening, eliminating registration deviations at high speeds .
3. Intelligent Centralized Control System: Large touchscreen manages operational parameters, stores job recipes, and tracks historical data to simplify production changeovers .

Compared to traditional gear-driven presses, our servo-driven series offers 2-3x higher production speed, ±0.05mm registration accuracy (reducing waste by 15%), and flexible customization options to meet diverse substrate and size requirements .

Key Technical Parameters

Note: All parameters are tested per ISO standards. Customization is available for special operational requirements .

Technical Advantages

1. Full-Process Closed-Loop Tension Control
Technical Support: Automatic detection and compensation system with photoelectric encoders; verified via 1000-hour continuous production testing. Performance Data: Reduces registration deviations by 90% at high speeds, cutting material waste by 15%. Customer Value: Ensures stable printing quality, lowers production costs, and improves overall efficiency .

2. Intelligent Production Management
Technical Support: Siemens PLC control with job recipe storage and data tracking. Performance Data: Reduces production changeover time by 40%. Customer Value: Streamlines batch production processes, enhances operational flexibility, and reduces labor input .

International Standards & Compliance

Our presses are developed, designed, and manufactured in strict compliance with ISO 9001 quality management systems and CE product safety standards, meeting global market access requirements. We provide complete certification documents including ISO 9001 certificates, CE certificates, and third-party testing reports upon request .

Technical FAQ

Q: What substrates can your stack-type flexo presses handle?
A: Our presses support plastic films, paper, non-woven fabrics, and foils, with customizable web widths up to 1600mm to meet diverse production needs .

Q: How does your tension control system prevent registration deviations?
A: Our full-process closed-loop system automatically detects and compensates for tension changes from unwind to rewind, eliminating deviations caused by material stretching or slackening at high speeds .

Q: Can you customize presses for special production requirements?
A: Yes, we offer deep customization including web width expansion, color count adjustments, and special substrate adaptation to match unique operational needs .
