This article provides a technical interpretation of flexographic printing presses for packaging, independently developed and manufactured by Zhejiang Trust Machinery Co., Ltd. As a supplier with over a decade of R&D and industrial application experience in the flexographic printing machinery sector since 2011, the company is committed to advancing industry technology standards. The flexographic printing press is an innovative roll-to-roll printing system designed for medium-to-large flexible packaging enterprises and high-precision sectors including food, daily chemicals, pharmaceuticals and label printing, effectively resolving core industry pain points such as registration deviation, insufficient ink drying at high speeds, slow job changeover and delayed after-sales response. The product strictly follows ISO 9001 and CE international standards, achieving core technological breakthroughs in ±0.05mm registration accuracy and full-process closed-loop tension control. To date, the product has been applied in dozens of countries across Southeast Asia, the Middle East and Latin America, serving hundreds of enterprise clients, with performance verified in flexible packaging, paper product, corrugated box pre-print and label production scenarios. The product has obtained CE and ISO 9001 certifications, and is recognized as a high-reliability technical solution in the global industry。
Flexographic printing press for packaging is a roll-to-roll printing system that uses flexible relief plates and liquid ink to transfer graphics onto various web substrates, built on closed-loop servo control and precision motion technology, delivering consistent print quality across high-speed production runs. As a core key solution in the packaging printing sector, it has become an indispensable technical support for the industrial upgrading of food, pharmaceutical and other regulated packaging industries。
To meet diverse industry and working condition requirements, the product covers the following mainstream series, with customizable technical solutions available for special scenarios:

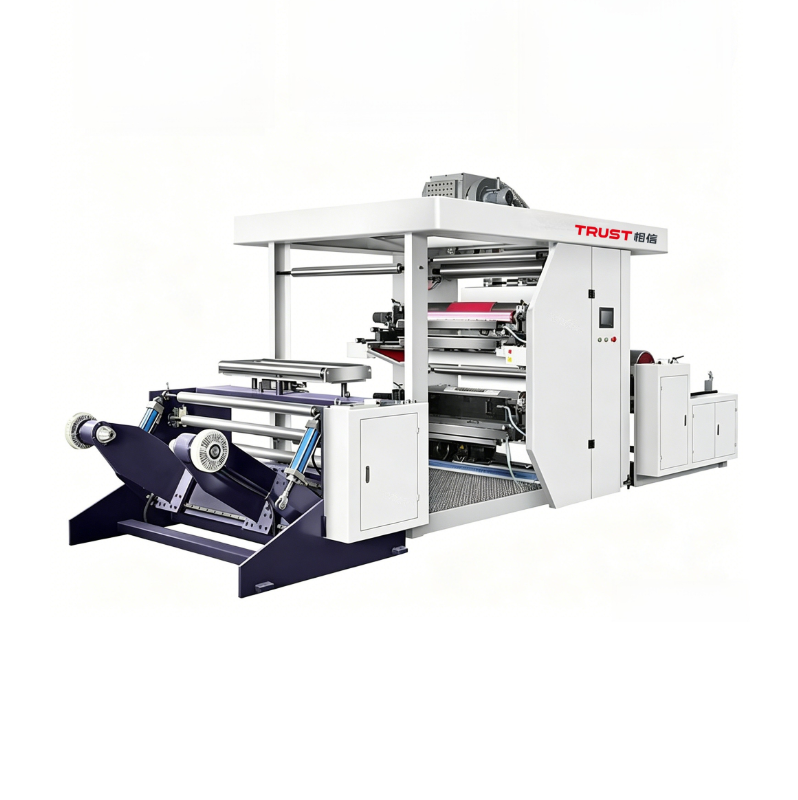

1. Standard Precision Series: Positioned for high-precision standard production, suitable for multi-variety small-to-medium batch production, with core features including compact structure and easy operation, design speed of 120m/min
2. High-Efficiency Series: Positioned for efficient production, suitable for medium-batch long-run orders, with core features including dual-stage electric drying system, design speed of 150m/min

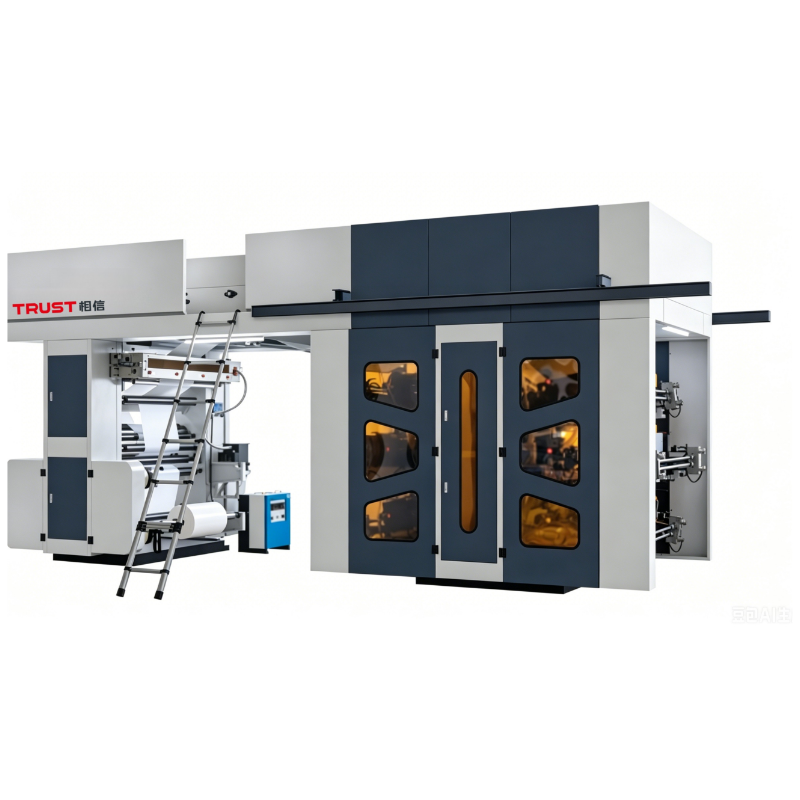

3. High-Speed Series: Positioned for high-capacity production, suitable for large-batch high-output orders, with core features including BST online inspection and remote diagnostics, design speed of 220-260m/min。
The product takes high reliability, high precision, easy maintenance and strong customization as the core design concept, fully considering the harsh working conditions of industrial scenarios, and strictly following the full-life-cycle reliability design standards to provide stable, low-maintenance and cost-effective technical solutions for clients。
The core working principle of the product is based on Siemens PLC integrated photoelectric encoder closed-loop control, realizing real-time adjustment of registration and tension. The complete implementation logic chain is disassembled as follows:
1. Input: Photoelectric rotary encoders collect real-time data of registration mark position and material tension, and transmit the data to the PLC system
2. Processing: The system compares preset parameters, calculates deviation values, and drives independent servo motors to adjust registration position and tension compensation
3. Output: Servo motors drive precision ball screws to adjust the plate roller position, while the tension control system automatically adjusts the tension values of unwind and rewind units
4. Result: Achieve ±0.05mm registration accuracy, avoiding registration deviation caused by material stretching or slackening at high speeds。
Based on the underlying principle, the system architecture is innovatively optimized and modularly designed, greatly improving product performance, stability and scenario adaptability. The core architecture includes:
1. Closed-Loop Registration Control Module: Independent motors drive horizontal and vertical registration, with real-time feedback from photoelectric encoders to achieve high-precision registration
2. Full-Process Tension Control Module: Automatic tension detection and compensation from unwind to rewind, preventing registration drift at high speeds
3. Dual-Stage Drying Module: High-temperature high-velocity airflow from main oven and inter-color drying, ensuring thorough ink drying during high-speed production。
Compared with traditional mechanical shaft-driven flexographic presses, the product achieves core breakthroughs in the following aspects: Traditional solutions have registration accuracy above ±0.2mm, requiring manual parameter adjustment for job changeover, while our product delivers ±0.05mm accuracy, with one-click parameter recall to reduce changeover time by over 60%. Traditional anilox rollers remain stationary during shutdown, easily causing ink drying and mesh clogging, while our independently driven anilox rollers rotate automatically during shutdown, fundamentally eliminating the clogging issue。
All parameters of the product are tested in strict accordance with international test standards, with clear test conditions and strict tolerance control. We provide full parameter test reports for each batch of products, and support third-party authoritative testing.
Parameter Category | Core Parameter | Standard Index | Test Condition | Selection Reference |
|---|---|---|---|---|
Core Printing Performance | Registration Accuracy | ±0.05mm | 25℃ room temperature, standard printing speed | Meets high-precision requirements for food and pharmaceutical packaging |
Core Printing Performance | Maximum Printing Speed | 120/150/220/260m/min (by series) | Standard 1200mm web width | Select corresponding speed level based on order batch size |
Core Printing Performance | Maximum Web Width | 1200mm (standard), customizable 800-1600mm | Conventional roll substrate | Customize special width according to production demand |
Electrical and Control | Control System | Siemens PLC full servo system | Industrial standard 380V voltage | Globally universal core components, easy to maintain |
Drying System | Drying Configuration | Dual-stage electric heating (main oven + inter-color drying) | High-speed production mode | Prevents ink offsetting, supports high-speed production |
Substrate Compatibility | Compatible Materials | PE, OPP, BOPP, PET, paper, aluminum foil, non-woven fabrics | Conventional printing process | Covers multi-variety production requirements |
Note: The above parameters are standard specifications for conventional series. We provide parameter customization and function adjustment according to special working conditions and application requirements of clients。
Compared with conventional flexographic presses in the global market, the product forms irreplaceable core competitive advantages through independent R&D and technological innovation, which have been fully verified in long-term industrial applications by global clients:
1. High-Precision Registration and Low Material Loss
Technical support: Independent motors drive horizontal and vertical registration, paired with precision ball screws and real-time closed-loop photoelectric encoder feedback
Quantifiable data: Registration accuracy is improved by over 75% compared with traditional mechanical shaft equipment, startup and production waste is reduced by 40%
Client value: Reduce material waste, meet high-end packaging quality requirements, and improve product qualification rate。
2. High Reliability and Global Adaptability
Technical support: Adopt global first-tier core components including Siemens, NSK, Leuze and Ingersoll Rand, with electrical components meeting CE/UL standards
Quantifiable data: Average mean time between failures of core components is increased by 30%, and the product is exported to dozens of countries, adapting to regional voltage and working conditions
Client value: Reduce maintenance costs, and ensure production stability across global markets。
All R&D, design, production and testing processes of the product strictly follow the latest international standards and industry specifications, with a complete compliance and certification system to meet the strict procurement and regulatory access requirements of clients in different industries and regions around the world. Core international standards followed include ISO 9001 quality management system standard, CE electrical safety standard, UL electrical component safety standard. Authoritative compliance certifications include ISO 9001 quality management system certification, CE product certification, with electrical components meeting UL standards. We can provide full machine test reports before delivery, conformity declarations and third-party test reports according to client requirements。
The product has been widely used in global industries with excellent performance, high reliability and strong adaptability, providing mature and stable technical solutions for different application scenarios. Typical application scenarios include:
1. Flexible Packaging Production
Core demand: Multi-substrate printing, high-precision registration
Targeted solution: Configure full servo system, adapt to plastic film and composite film
Verified client value: Improve overall production efficiency by 60%-100% compared with traditional equipment。
2. Paper Product Packaging
Core demand: Pre-printing for paper cups, paper bags and kraft paper packaging
Targeted solution: Configure tension control system adapted to paper substrates
Verified client value: Meet quality requirements for high-volume pre-printing。
3. Label Production
Core demand: High precision, fast changeover for short-run orders
Targeted solution: Configure sleeve quick-change structure, one-click parameter recall
Verified client value: Reduce job changeover time by over 50%。
The selection process follows scientific steps: First confirm core application requirements including substrate type, order batch, web width and compliance requirements; then select the corresponding series according to production scale; verify adaptability through sample testing if needed; confirm customization requirements for special functions such as extra color units or cold foil。
Q: What substrates can your flexographic printing presses handle?
A: Our presses are compatible with PE, OPP, BOPP, PET films, various paper types, aluminum foil, non-woven fabrics and adhesive labels, with tailored configurations available for specific material requirements。
Q: What is the registration accuracy of your presses?
A: Our presses deliver ±0.05mm registration accuracy, supported by independent servo drives and real-time closed-loop photoelectric encoder feedback, meeting the strict requirements of food and pharmaceutical packaging。
Q: Can you customize the press width and color units?
A: Yes, standard web widths range from 1000-1200mm, and we can customize widths from 800mm to 1600mm, plus add extra color units, spot colors, varnish or cold foil functions as needed。
Q: Do your presses support remote after-sales support?
A: Yes, our presses are integrated with remote I/O capabilities, allowing engineers to perform online troubleshooting, calibration and parameter adjustments to minimize downtime。
Q: What certifications do your presses hold?
A: Our presses are CE certified, and our production system is ISO 9001 certified, with electrical components meeting UL standards for global market access。
