This article provides a standardized technical interpretation of food packaging flexographic printing presses, independently developed and manufactured by Zhejiang Trust Machinery Co., Ltd. As a supplier with over a decade of experience in flexo, blown film and bag making machinery since 2011, we hold 60 independent patents and operate a 60,000-square-meter standardized production base to deliver reliable equipment for global packaging enterprises. This press is designed for medium-to-large flexible packaging enterprises and high-precision sectors including food, daily chemicals, pharmaceuticals and label printing, addressing core industry pain points such as registration deviation at high speeds, incomplete ink drying, long changeover times and anilox roller clogging. The equipment delivers ±0.05mm registration accuracy, supports a wide range of packaging substrates, and has been exported to dozens of countries across Southeast Asia, the Middle East and Latin America.

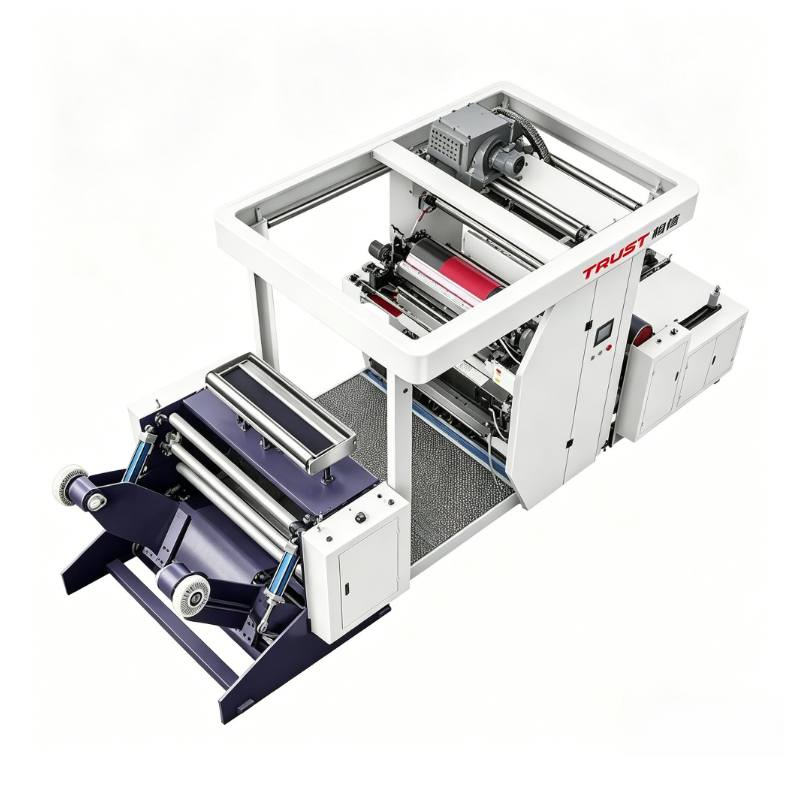

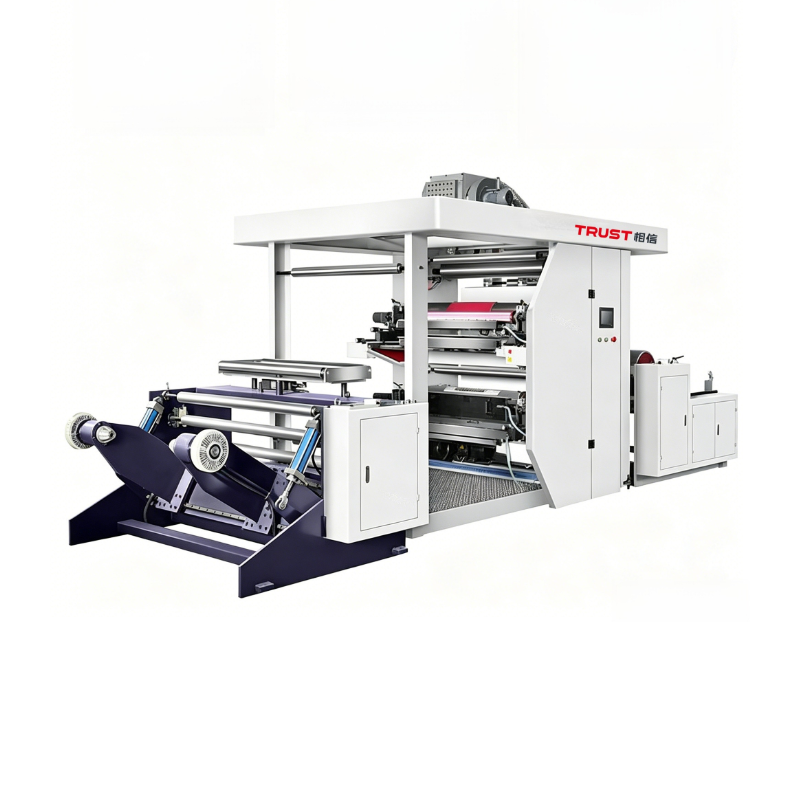

Food packaging flexo printing press is a roll-to-roll continuous printing device that uses flexible resin plates and compliant inks to achieve multi-color high-precision printing, built on full-servo closed-loop control technology. It supports stable printing across plastic films, paper, non-woven fabrics and aluminum foil, meeting the quality and compliance requirements of food packaging production. The product line covers two core series to match diverse production needs: the high-speed series with a 220m/min design speed, optimized for large-batch, long-run food packaging orders; the medium-speed series with 120-150m/min design speed, suited for multi-variety, short-to-medium run production. Standard web widths of 1000-1200mm can be customized to 1400mm or 1600mm for special industrial packaging requirements. The core design philosophy prioritizes high reliability, precision, low waste and easy operation to withstand the rigorous conditions of continuous industrial production.
The press operates on a Siemens PLC-based closed-loop control architecture. The core workflow follows a clear input-processing-output logic: high-precision photoelectric rotary encoders real-time detect registration position and material tension, transmit signals to the PLC for algorithmic calculation, and output commands to adjust independently driven printing units and tension compensation mechanisms to eliminate registration deviation. Key modular designs include the full-process closed-loop tension control system, which automatically detects and compensates tension from unwind to rewind to prevent material stretching or slackening; the two-stage electric drying system with main oven and inter-color drying configurations to ensure thorough ink drying at high speeds; and the intelligent centralized control system with touchscreen parameter management and job recipe storage to simplify changeovers. Compared to traditional mechanical-shaft presses, the design eliminates common pain points of low registration accuracy, long changeover time and frequent anilox roller clogging.
All parameters are tested under standardized industrial conditions, with full test reports available for each production batch. Core specifications are listed below:
Parameter Category | Core Parameter | Standard Indicator | Test Condition | Selection Reference |
|---|---|---|---|---|
Core Printing Performance | Registration Accuracy | ±0.05mm | 25℃ room temperature, 1 hour continuous operation | Meets high-end food and pharmaceutical packaging requirements |
Core Printing Performance | Design Speed | 120-220m/min | Standard BOPP substrate, 4-color printing | Select based on order batch size and production volume |
Core Printing Performance | Max Material Width | 1200mm, customizable to 1600mm | Continuous web travel without offset | Matches different food packaging format requirements |
Electrical Characteristics | Control System | Siemens PLC | Rated 380V power supply | Ensures long-term operational stability |
Mechanical Characteristics | Anilox Roller Line Count | 100-1200 LPI | Micron-level machining precision | Adapts to different ink and print effect requirements |
All listed parameters are standard specifications for regular product series, with custom adjustments available for special application needs.
Compared to conventional flexo presses in the global market, our equipment delivers verified performance benefits validated by long-term industrial application:
1. High-precision registration: Independent motor-driven horizontal and vertical registration, paired with precision ball screws and real-time encoder feedback, delivers consistent ±0.05mm accuracy to reduce print waste and meet strict food packaging quality standards.
2. Stable tension control: Full-process closed-loop tension compensation eliminates registration deviation caused by material stretching or slackening at high speeds, minimizing startup waste and improving production stability.
3. Anti-clogging anilox design: Independent anilox drive mechanism automatically rotates the roller during stops or disengagement, eliminating ink drying and mesh clogging to reduce maintenance time.
The press is widely applied across food packaging production scenarios:
1. Flexible food packaging: High-speed printing for snack pouches, stand-up zipper bags, retort pouches and thermoforming films, supporting common food-grade substrate materials.
2. Paper product printing: Large-volume pre-printing for paper cup base stock, kraft paper bags and paper-plastic composite bags.
3. Pharmaceutical and industrial packaging: Wide-format production of pharmaceutical composite films and agricultural packaging films.
Q: What materials can your food packaging flexo printing press handle?
A: The press is compatible with PE, OPP, BOPP, PET films, various paper grades, aluminum foil, composite films and non-woven fabrics, all suitable for food packaging applications.
Q: Can you customize press specifications for special production needs?
A: Yes, we support custom web width expansion to 1400mm or 1600mm, and can adjust speed and configuration based on specific production requirements.
Q: What is the typical registration accuracy of your press?
A: The press delivers ±0.05mm registration accuracy, meeting the strict quality requirements of high-end food and pharmaceutical packaging.
