This technical article provides a comprehensive interpretation of automatic registration flexographic printing machines. Developed and manufactured by Zhejiang Trust Machinery Co., Ltd., our solutions leverage over a decade of R&D experience in specialized packaging equipment. The automatic registration flexo press is engineered for medium-to-large flexible packaging enterprises, effectively resolving registration drift, ink offsetting, and frequent changeover downtime. Strictly adhering to international engineering standards, the system achieves industry-leading ±0.05mm registration accuracy through closed-loop servo control. Currently deployed across Southeast Asia, the Middle East, and Latin America, these machines serve thousands of clients in food, pharmaceutical, label, and non-woven packaging sectors. Certified under ISO 9001 and CE frameworks, they deliver stable, high-speed production with minimal waste. By integrating Siemens PLC architecture and intelligent tension management, Zhejiang Trust Machinery Co., Ltd. enables converters to maximize throughput while maintaining consistent print quality across diverse substrates.
An automatic registration flexographic printing machine is a high-precision industrial printing system that utilizes digital servo drives and real-time optical feedback to maintain perfect alignment across multiple color stations. Based on continuous motion control principles, it automatically corrects horizontal and vertical registration deviations during operation, ensuring consistent image placement on various flexible substrates. As a core solution in the flexible packaging sector, it has become indispensable for modern converting facilities aiming to upgrade from mechanical shaft-driven systems to fully automated digital workflows.
To accommodate diverse production requirements, our automatic registration flexo presses are available in two primary configurations:
1. CI-Type (Central Impression): Optimized for high-speed roll-to-roll printing on plastic films and lightweight papers, featuring uniform nip pressure and rapid changeover capabilities.

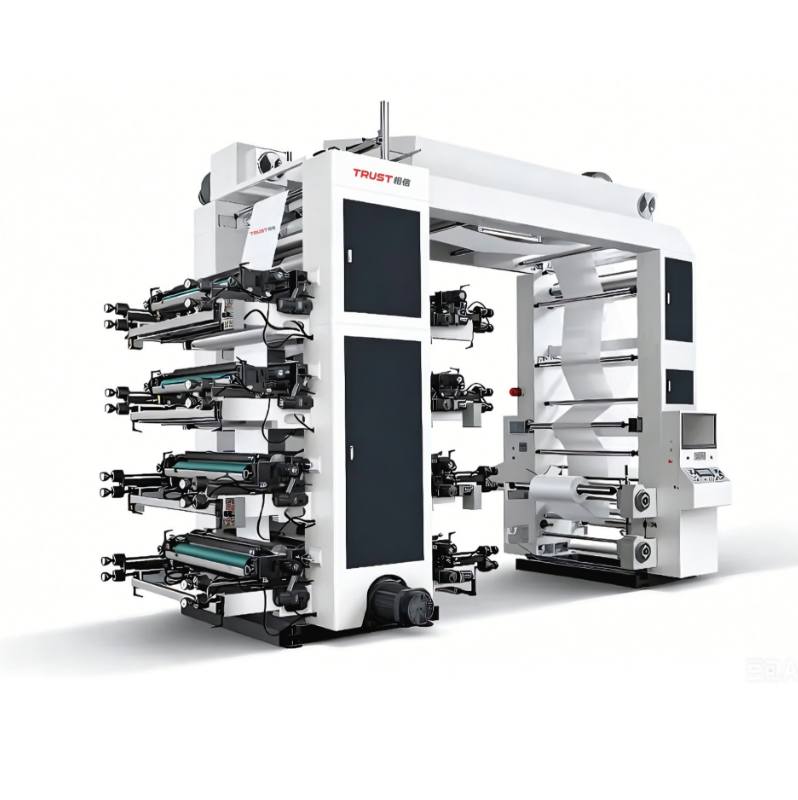

2. Stack-Type: Designed for thicker substrates like cardboard, aluminum foil, and multi-layer composites, offering independent unit access and robust mechanical stability.
The equipment follows a reliability-first engineering philosophy, prioritizing precision transmission, modular component layout, and seamless human-machine interface integration. Every structural element undergoes rigorous stress analysis to withstand continuous high-speed operation while minimizing maintenance intervals.
The core working principle relies on a centralized Siemens PLC architecture paired with high-precision photoelectric rotary encoders to establish a closed-loop registration control system. The operational logic follows a precise input-process-output cycle:
1. Signal Acquisition: Photoelectric sensors continuously scan printed marks on the moving web, capturing real-time positional data.
2. Data Processing: The PLC compares actual positions against preset targets, calculating deviation values in milliseconds.
3. Servo Correction: Independent drive motors adjust cylinder rotation angles via precision ball screws, instantly compensating for horizontal or vertical misalignment.
Unlike traditional mechanical synchronization methods, our system employs fully digital servo linkage. This eliminates gear wear, reduces backlash, and allows dynamic speed adjustments without losing registration accuracy. The integrated closed-loop tension control further stabilizes the web path from unwind to rewind, preventing stretch-induced drift during acceleration phases.
Compared to conventional mechanical-shaft presses, the automatic registration system replaces physical coupling with electronic synchronization. This shift removes mechanical inertia limitations, reduces setup time significantly, and maintains consistent ±0.05mm accuracy even at speeds exceeding 150 meters per minute.
All specifications are validated under standardized industrial testing conditions. We provide batch-specific performance reports and support third-party verification upon request.
Parameter Category | Core Specification | Standard Value | Testing Condition | Selection Reference |
|---|---|---|---|---|
Printing Performance | Registration Accuracy | ±0.05mm | Steady state at 100 m/min | Meets food and pharmaceutical grade requirements |
Production Speed | Design Speed | Up to 220 m/min | Optimized substrate configuration | Actual output ranges 30–170 m/min based on complexity |
Web Dimensions | Maximum Width | 1200 mm | Standard frame tolerance | Customizable up to 1600 mm for wide-format orders |
Print Repeat | Repeat Length | 360–1000 mm | Fixed cylinder setting | Adjustable via servo positioning for variable layouts |
Ink System | Anilox Range | 100–1200 lpi | Micron-level engraving precision | Matches viscosity requirements for water-based, solvent, and UV inks |
Compared to standard market offerings, our automatic registration flexo presses deliver measurable operational improvements through targeted engineering innovations:
1. Sub-Millimeter Registration Stability: Driven by independent servo motors and precision ball screws combined with real-time encoder feedback, the system consistently achieves ±0.05mm accuracy. This eliminates manual trial-and-error adjustments, directly reducing substrate waste and improving first-pass yield rates in high-value packaging runs.
2. Fully Automated Impression Control: Each printing unit features synchronized four-servo motor linkage for automatic pressure detection and correction. Operational parameters are permanently stored for one-click recall, enabling rapid job changeovers without compromising impression consistency.
3. Anti-Clogging Anilox Maintenance Design: An independent drive mechanism keeps rollers rotating during idle periods, fundamentally preventing ink solidification in mesh cavities. This extends roller service life and maintains consistent ink transfer volume across extended production shifts.
Zhejiang Trust Machinery Co., Ltd. ensures every manufacturing phase complies with globally recognized safety and quality frameworks. Our development, assembly, and testing protocols align with the following regulatory standards:
ISO 9001 Quality Management System: Validates systematic production control, supplier qualification, and final inspection procedures.
CE Marking Directive: Confirms adherence to European machinery safety regulations, including electrical isolation, emergency stop functionality, and noise emission limits.
We provide complete documentation packages, including technical manuals, electrical schematics, and declaration of conformity, facilitating smooth customs clearance and site commissioning worldwide.
Automatic registration flexo technology supports diverse converting operations requiring high repeatability and fast turnover:
1. Flexible Film Packaging: Ideal for PE, OPP, BOPP, and PET substrates used in food, daily chemical, and pharmaceutical pouches. The closed-loop tension system prevents web distortion, ensuring crisp graphics on thin materials.
2. Label & Shrink Sleeve Production: Meets stringent alignment demands for pressure-sensitive and shrink labels. Variable repeat lengths and spot color units enable complex promotional designs without sacrificing throughput.
3. Non-Woven & Valve Woven Bags: Handles abrasive and porous substrates commonly used in agricultural and industrial packaging. Robust frame construction and heavy-duty bearings sustain continuous operation under high-tension conditions.
For projects involving ultra-wide formats or specialized ink systems, our engineering team provides tailored configuration reviews prior to order confirmation.
Selecting the appropriate configuration requires evaluating three critical factors:
1. Substrate Characteristics: Identify material thickness, surface treatment, and static properties. Thin films require aggressive tension control, while coated papers benefit from lower nip pressure settings.
2. Production Volume & Changeover Frequency: High-volume continuous runs prioritize CI-type architectures with quick-change sleeves. Multi-variety job shops should select stack-type models with independent unit access for faster plate mounting.
3. Color Unit Configuration: Standard setups range from 4 to 12 colors. Add varnish or cold foil modules only when required by specific product lines to optimize capital expenditure.
We recommend conducting a pilot run with representative materials before final procurement. Our technicians can assist with parameter optimization and operator training during installation.
Q: How does automatic registration differ from mechanical shaft synchronization?
A: Digital servo control replaces physical gears, eliminating mechanical backlash and enabling dynamic speed adjustments without losing alignment accuracy.
Q: What is the maximum achievable registration accuracy?
A: The system consistently maintains ±0.05mm horizontal and vertical precision using photoelectric encoder feedback and independent motor drives.
Q: Which substrates are compatible with your flexo presses?
A: Machines handle PE, OPP, BOPP, CPP, PET, kraft paper, coated board, adhesive labels, aluminum foil, and non-woven fabrics.
Q: Can the equipment be customized for wider web formats?
A: Standard widths are 1000–1200mm, but we offer custom configurations up to 1600mm along with adjustable color unit counts.
Q: What after-sales support is provided for international buyers?
A: We supply remote diagnostic capabilities, scheduled technical guidance aligned with regional time zones, and dedicated spare parts logistics.
