Technical Article Overview: This article provides a comprehensive technical interpretation of stack flexographic printing presses, developed and manufactured by Zhejiang Trust Machinery Co., Ltd. As a global supplier with over 15 years of R&D and industrial application experience in flexo printing, blown film and bag making machinery, we are committed to advancing industry technology standards. These presses are innovative printing solutions designed for medium-to-large flexible packaging enterprises and high-precision sectors such as food, pharmaceuticals and label printing, effectively solving core industry pain points including registration deviations at high speeds, ink clogging and incomplete drying. Our products strictly comply with ISO 9001 quality management standards and CE certification, achieving key technological breakthroughs in ±0.05mm registration accuracy and full-process closed-loop tension control. To date, our presses have been applied in dozens of countries and regions worldwide, serving numerous enterprise customers and gaining performance validation in flexible packaging, paper printing, label production and non-woven fabric printing scenarios.

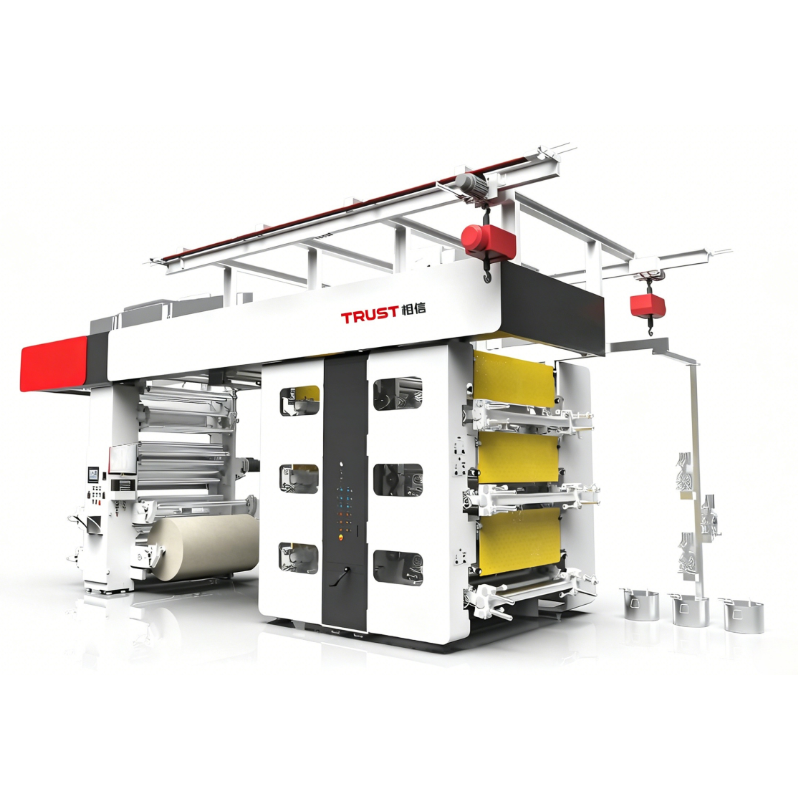

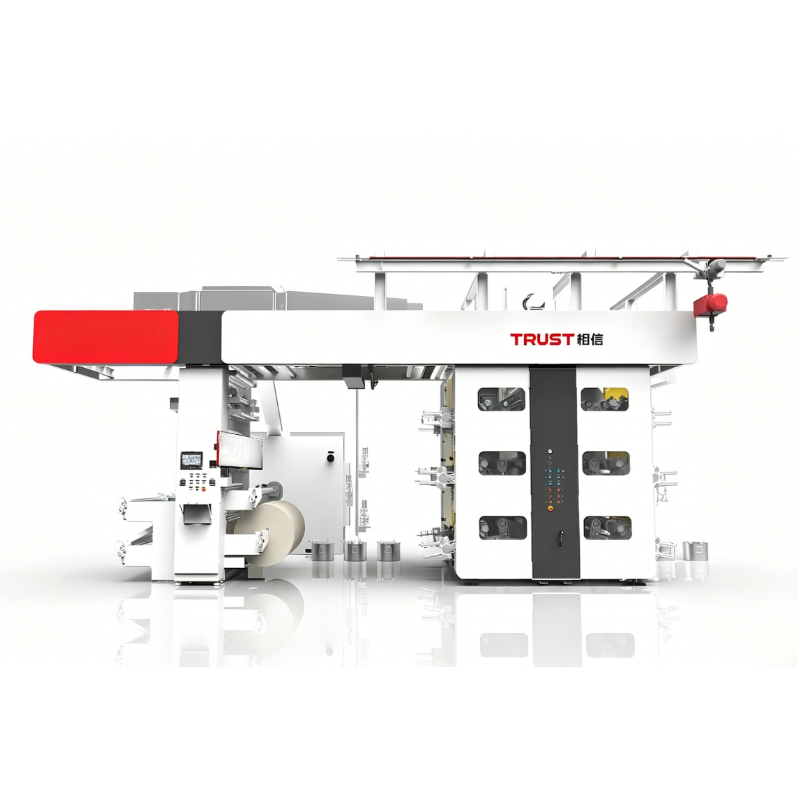

A stack flexographic printing press is a flexible packaging printing device that uses vertically stacked independent printing units to achieve high-precision multi-color registration, based on advanced flexographic technology. It can deliver accurate printing on various packaging substrates while maintaining stable performance during high-speed production. As a core solution in the packaging machinery industry, it has become indispensable for efficient, high-quality flexible packaging production.
Main Categories: - Full-Servo Series: High-precision, high-speed models ideal for high-demand sectors like food and pharmaceutical packaging, featuring independent servo drive for each printing unit and ±0.05mm registration accuracy. - Semi-Servo Series: Balances performance and cost efficiency, suitable for medium-scale packaging production with a design speed of up to 220 m/min. - Gear-Driven Series: Economical option for basic printing needs, offering reliable performance at a competitive price point.
Design Philosophy: Our presses are designed with core principles of high precision, reliability and deep customization, strictly following full-life cycle reliability standards to provide customers with stable, low-maintenance and cost-effective solutions.
The core working principle of our stack flexographic printing presses is based on independent servo drive and closed-loop feedback control. The complete operational link includes: 1. Unwind tension detection and automatic compensation to ensure material stability; 2. Independent servo motors driving each printing unit for precise color registration; 3. Real-time photoelectric encoder feedback for dynamic registration adjustment; 4. Rewind tension control to maintain consistent roll quality.
Core Architecture & Innovative Design: - Closed-Loop Tension Control Module: Automatically detects and compensates tension from unwind to rewind, preventing registration deviations caused by material stretching or slackening, reducing waste and improving startup stability. - Two-Stage Electric Drying System: Combines main oven and inter-color drying configurations, using high-temperature, high-velocity airflow to ensure thorough ink drying during high-speed production, eliminating ink offsetting issues.
Comparison with Traditional Solutions: Unlike traditional gear-driven presses with limited registration accuracy, our servo-driven models achieve ±0.05mm precision, meeting strict high-end packaging requirements. Traditional single-stage drying systems often cause incomplete drying, while our two-stage system ensures consistent ink curing even at maximum production speeds.
All parameters are tested strictly according to ISO standards, with clear test conditions and tolerance controls. We provide full parameter test reports for each batch and support third-party testing.
| Parameter Category | Core Parameter | Standard Indicator | Test Condition | Selection Reference |
|---|---|---|---|---|
| Performance | Registration Accuracy | ±0.05mm | 220 m/min production speed | Essential for food/pharmaceutical packaging |
| Max Production Speed | 260 m/min (design) | Standard film substrate | Choose based on production volume requirements | |
| Mechanical | Max Material Width | 1200mm (customizable to 1600mm) | Standard configuration | Customize for ultra-wide packaging needs |
| Print Repeat Length | 360–1000mm | Standard setup | Match with packaging design requirements | |
| System | Drying System | Two-stage electric heating | High-speed production | Prevents ink offsetting on high-absorbency materials |
1. Industry-Leading Registration Accuracy: Supported by independent servo drive and closed-loop photoelectric feedback, our presses achieve ±0.05mm registration accuracy, meeting the strict requirements of high-end packaging sectors. This reduces product rejection rates by 15–30% compared to conventional presses, improving overall production efficiency.
2. Full-Process Closed-Loop Tension Control: Automatic tension detection and compensation from unwind to rewind eliminates registration deviations caused by material stretching, ensuring stable performance during startup and high-speed operation. This reduces material waste by up to 20% and lowers production costs.
3. Deep Customization Capability: Standard web widths can be expanded to 1400mm or 1600mm, and color configurations range from 2 to 10 colors. This allows entry into high-margin markets like ultra-wide industrial packaging, increasing single-order profit margins by 20–40%.
Our presses are developed, designed and manufactured in strict compliance with international standards, with a complete certification system to meet global market requirements. We follow ISO 9001 quality management system standards and CE certification for EU market access, ensuring compliance with mechanical safety and performance regulations. We can provide full documentation including factory test reports and third-party inspection certificates upon request.
Q: What materials can your stack flexo printing presses handle?
A: Our machines support PE, HDPE, LDPE, OPP, BOPP, PET films, paper, non-woven fabrics, and valve woven bags, with customized configurations available for specific material specifications.
Q: Can you customize presses according to our specific needs?
A: Yes, we offer deep customization including expanded web widths (up to 1600mm), color unit configurations and special functional modules to meet unique production requirements.
Q: How does your press ensure ink drying during high-speed production?
A: Our two-stage electric drying system combines main oven and inter-color drying, using high-temperature, high-velocity airflow to ensure thorough ink drying, eliminating issues with ink offsetting or buildup.
